GB5050 MX Motorized UBE Table

MOTORIZED UBE TABLE
GB5050 MX

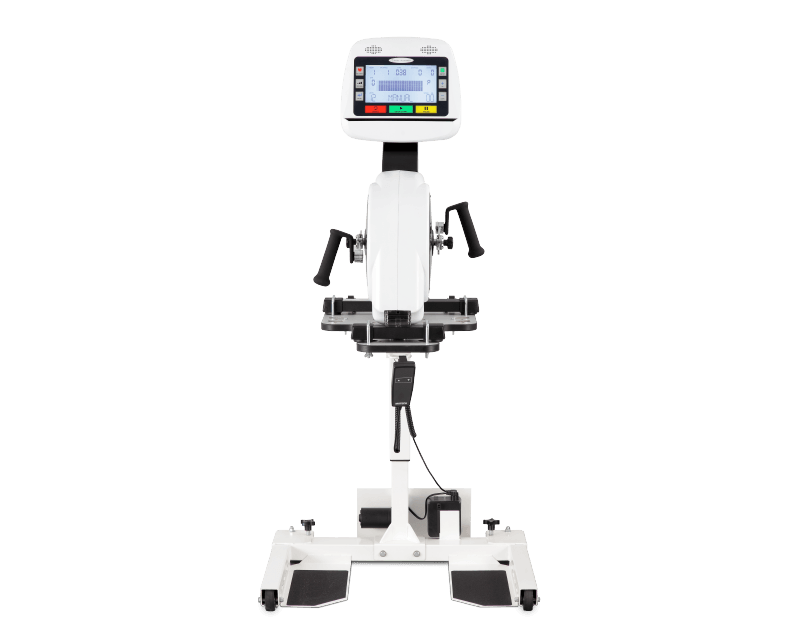

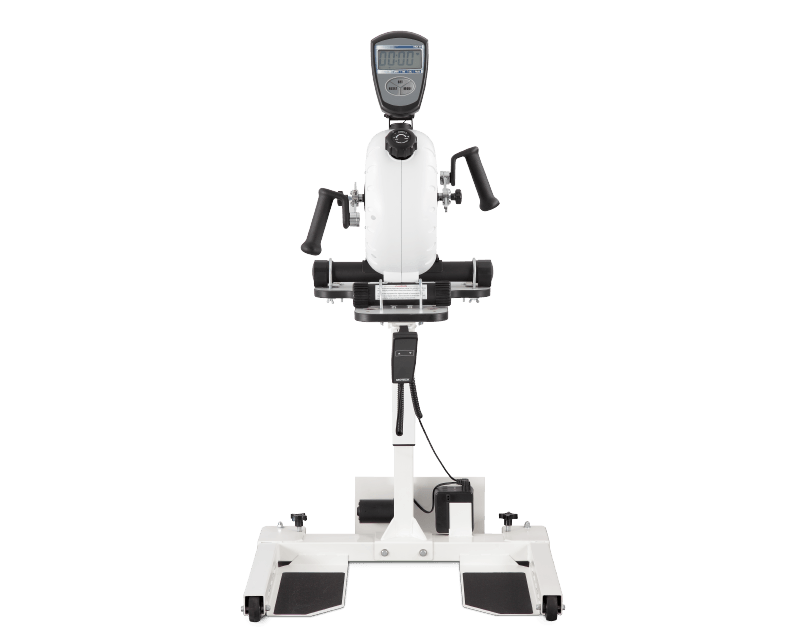

Body Charger offers a actuator systems UBE table with electric remote height adjustment. UBE table is approved for use with upper arm ergometer of GB5050 Upper and Lower Body Trainer Pro and GB3030 UBE Upper and Lower Body Trainer. Upper and Lower Body Trainer is for senior and physical therapy.

ENJOY THE CONTROL

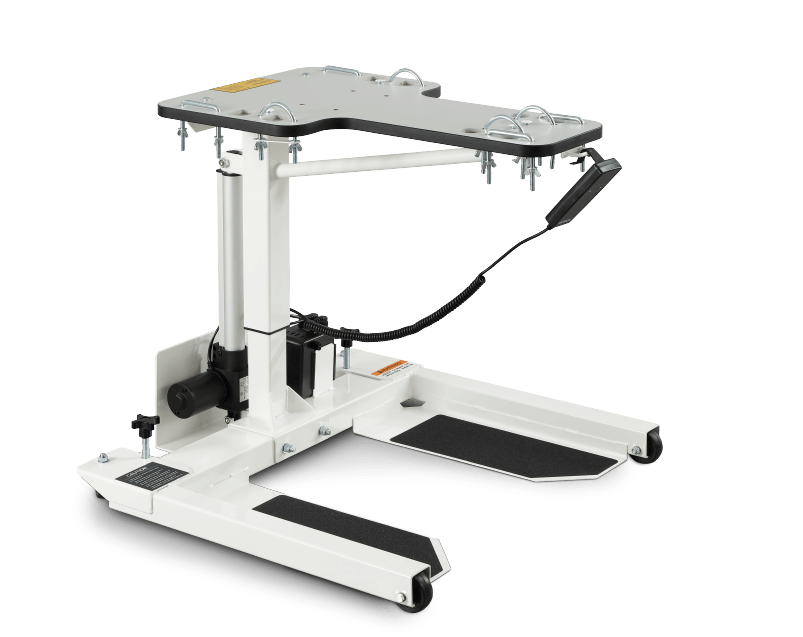

Electric linear actuator operation system provides a quiet and powerful movement.

SMALL HOOK . BIG SAFE

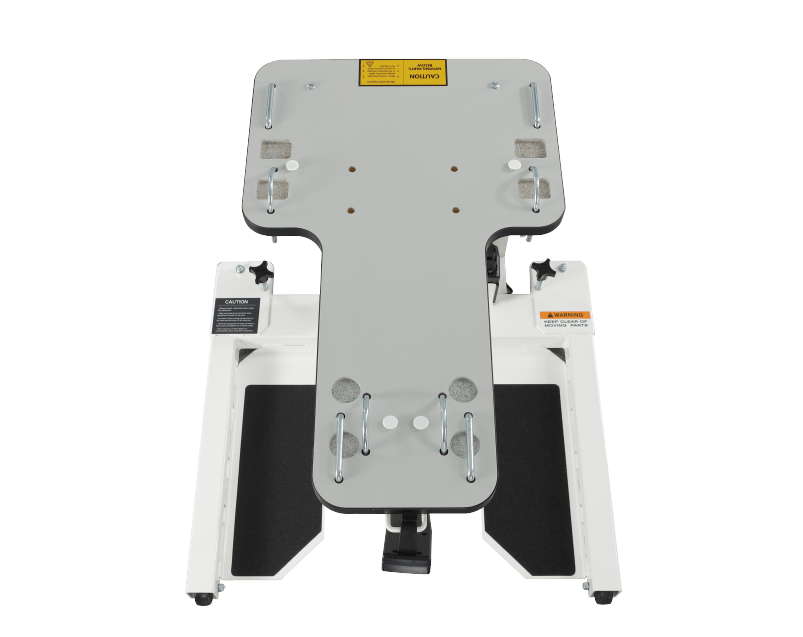

Stabilizer Lock Kits ensures the machine on the GB5050 MX Motorized UBE Table is stable and safe while exercising.


THE PERFECT MISSION AWAITS

Body Charger Motorized UBE Table fits different users ‘ body shape to have comfortable exercise posture.

ALWAYS BEHIND YOU

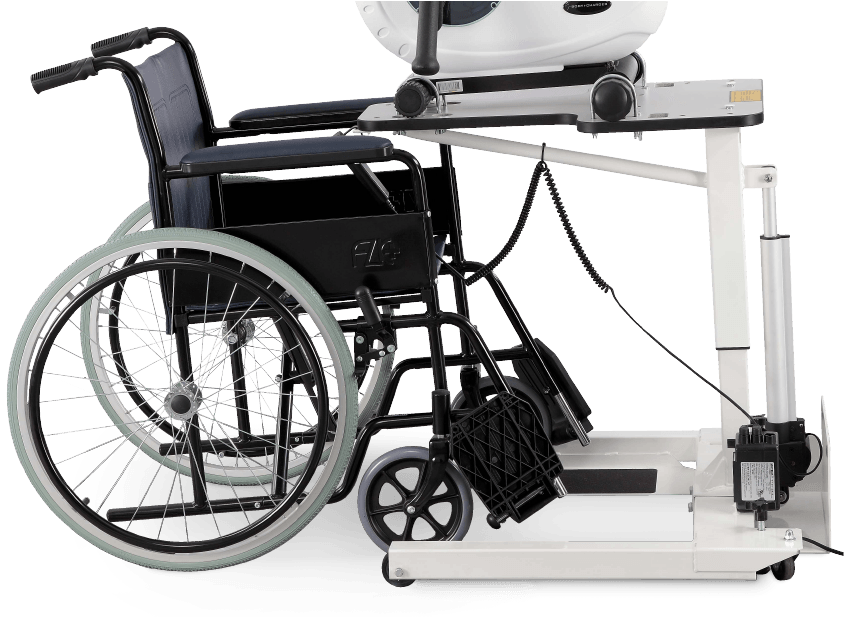

Anti-slip Mat design is perfect idea for the wheelchair users doing exercise to keep the wheelchair safe from slipping.

ANYONE IS MISSION POSSIBLE

Ideal design for Wheelchair Access meets the specific needs of wheelchair users GB5050 TX Hydraulic UBE Table has wide entry design with non-slip mats.

SPECIFICATIONS

  • FEATURES

    Operation System Linear Actuator

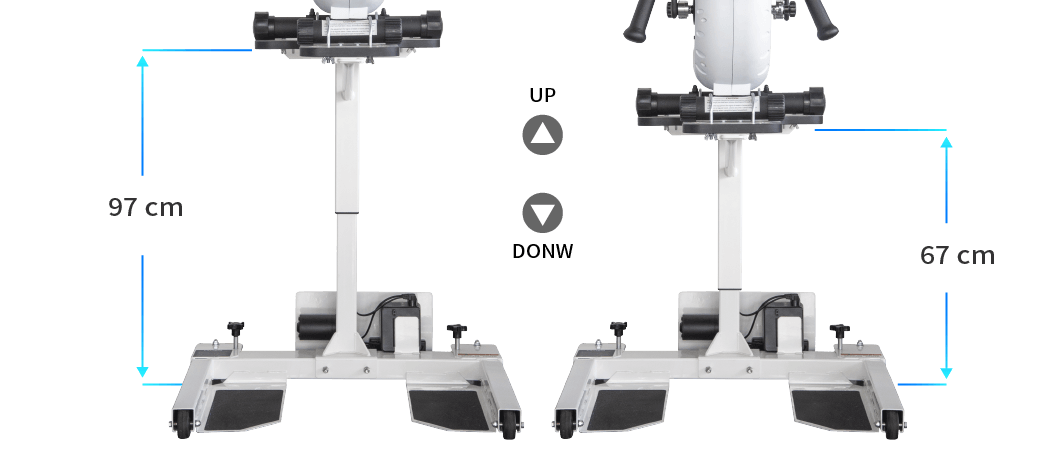

    Lift Height 670 – 970 mm

    Max. Speed at No Load 33.3 mm / sec

    Max. Speed at Full Load

    2.9 mm/ sec @6000N

    Stroke 50 – 300mm

    Noise Level ≤ 50 db

    Stabilizer 4, Secure Locking Brackets

    Wheelchair Access ●

    Handlebar for Movement –

    Hydraulic System for Lift-Up/ Down –

    Power Requirements Input: 100 – 240 VAC ~ 50/60Hz, 1.5A Max

    Output: DC24V-3.0A

    Certificated CE

  • TECH SPEC.

    Max. Load 6000N/ Push

    4000N/ Pull

    N.W. 35 kg / 77 lbs. (est.)

    G.W. 37 kg / 81 lbs.  (est.)

    Overall Dimensions

    (L x W x H) 90 x 84 x 67-97 cm

    / 35.5” x 33″ x 26″-38″

  • PACKING DETAILS

    Container loading 1 x 20″ 200 pcs

    Container loading 1 x 40″ 420 pcs

    Carton Dimensions

    (L x W x H) 82 x 74 x 20 cm

    / 32″ x 29″ x 8″

● Standard / ─ Not offered / * Bluetooth module sold separately
