GB7007 RECUMBENT LINEAR STEPPER

RECUMBENT LINEAR STEPPER
GB7007

Body Charger Recumbent Linear Stepper is 2:1 Arm to Leg fitness and rehabilitation equipment, upper and lower limb total body workout. GB7007 is designed with a small ROM (range of motion) and swivel seat to increase functionality and accessibility that traditional exercise equipment doesn’t lend itself to, the small ROM on the joints in decreasing pain and restores knee function soon.

COMPATIBLE:

ENJOY THE VIEW

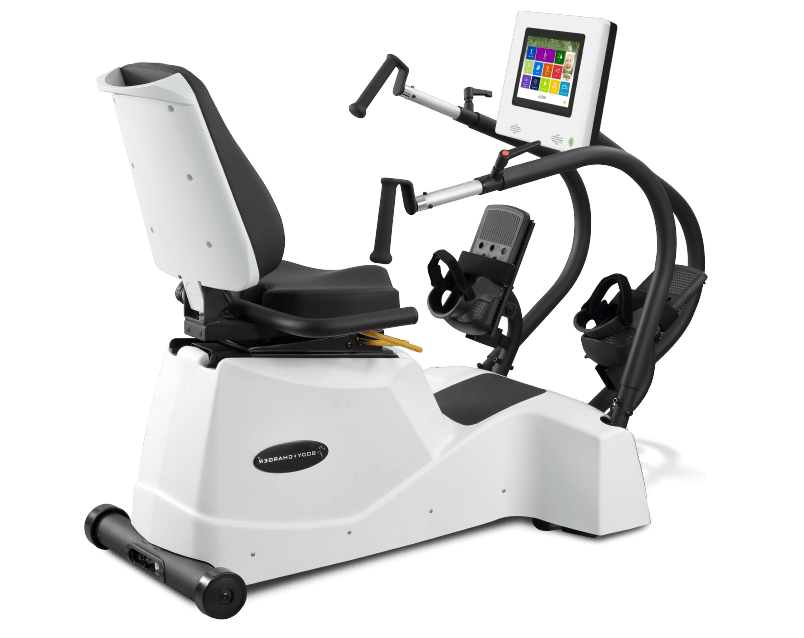

SMART CONSOLE

10.1 INCH TFT LCD Console


Body Charger all cardio products feature a user orientation technologiesthat make our products more humanity, versatile and interactive.

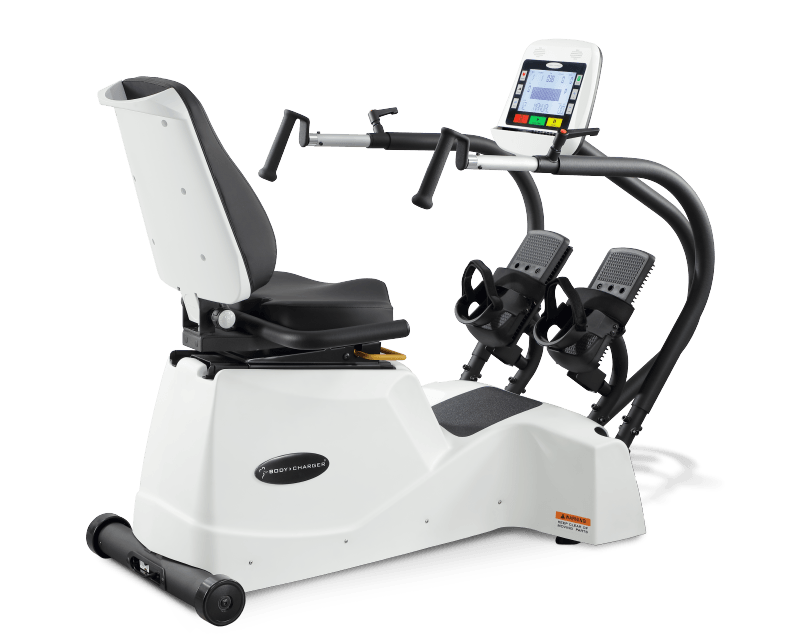

STANDARD CONSOLE

9 INCH LCD Console


It includes workout calendar that can save with USB, which enables each user to store past exercise data at anytime.

ERGONOMIC MATTERS

Body Charger Recumbent Linear Stepper with 2:1 ratio between frequencies of upper and lower limb motion is a fairly good correspondence.

YOUR FINEST VINTAGE ON SEAT

180° Swivel Seat features a comfortable, oversized seat and it’s easier for the user to ingress/egress.

BIGGER . SAFEST

Optional Orthopedic Foot and Heel Support Pedal reduces the risk of injury, and increasing support to weak joints.

PREFER THE UPPER BODY MOVEMENT EXPERIENCE?

Featured the specific transition step platform it can put your feet on it and just do the upper body exercise.

SPECIFICATIONS

  • FEATURES

    Bi-Directional –

    Low Watts Starting ●

    Total Body Training ●

    Independent Stepping Motion

    Low Step-Through Design –

    Seat Design 20″ Oversized Seat

    Swivel Seat Function 180°

    Reclining Seat Adjustment 3 Levels / 12°

    Seat Adjustment 14, Fully Horizontal Adjustment

    Removable Seat Function –

    Handlebar Adjustment 13 Levels

    Adjustable Console Angle –

    Handlebar Design Ergo-Grip Rotating Handlebar

    Pedal Design Orthopedic Rehab Pedal with Neoprene Supportive Heel Cup

    Wheels for Easy Mobility ●

    Wheelchair Accessible –

    With Accessory Holder ●

    Energy Saving Mode ●

    Certificated CE

  • STANDARD CONSOLE

    Display Type 9″ White Backlit LCD

    Exercise Programs 20, Warm Up, Manual, Interval, Valley, Ramp, Mountain, Rolling, Climb, Random, Hill, Fat Burn, Cardio, Strength, HRC (65%, 85%), Constant Power, Isokinetic, Goal (Calories, Distance), Recovery, User 1

    Display Feedback Time, Level, Pulse, Distance, Calories, RPM / SPM, Watts, METs, Speed

    Compatible Apps Optional, Kinomap/Zwift App

    Capacitance Touchable Keypad ●

    USB Port ●, Export Workout Data, Software Upgrade and Charging

    Quick Start ●

    Pause Function ●

    Multi-Language –

    Entertainment System –

    Bluetooth BT 4.2 (FTMS)* Optional, required for App

    Wireless –

    NFC –

    Built-in Heart Rate Monitor (5K) Embedded

    Built-in Heart Rate Monitor (Bluetooth) Optional with BT 4.2 (FTMS)*

    Headphone Plug –

    RS232 Port –

  • SMART CONSOLE

    Display Type 10.1″ TFT IPS Touch Screen

    Exercise Programs 16, Quick Start, Hill, Interval, Goal (Time, Calories, Distance, Steps), Virtual Reality, HRC (60%, 80%, Target HR), Fitness Test, Custom, Isokinetic, Constant Power, Brain Games

    Display Feedback Time, Level, Pulse, Distance, Calories, METs / Watt, RPM / Speed

    Compatible Apps Optional, Kinomap/Zwift App

    Capacitance Touchable Keypad –

    USB Port ●, Export Workout Data, Software Upgrade and Charging

    Quick Start ●

    Pause Function ●

    Multi-Language EN, ZH-TW, ZH-CN, JP

    Entertainment System ●

    Bluetooth BT 4.2 (FTMS)* Optional, required for App

    Wireless ●

    NFC ●

    Built-in Heart Rate Monitor (5K) Embedded

    Built-in Heart Rate Monitor (Bluetooth) Embedded

    Headphone Plug ●

    RS232 Port ●

  • RESISTANCE SYSTEM

    Operation System A. EMS System

    (Electromagnetic)

    B. DX System

    (Self-Generator Power)

    Resistance Levels 32 Levels

    (Standard Console)

    36 Levels

    (Smart Console)

    Power Requirements Input: 100 – 240 VAC

    ~ 50/60Hz, 1.5A Max

    Output: DC30V-2.0A

  • TECH SPEC.

    Max. User Weight 181 kg / 400 lbs.

    N.W. 95 kg / 209 lbs.

    G.W. 103 kg / 227 lbs.

    Overall Dimensions

    (L x W x H) 160 x 80 x 116 cm

    / 63” x 31.5″ x 45.5″

  • PACKING DETAILS

    Container loading 1 x 20″ 30 pcs

    Container loading 1 x 40″ 63 pcs

    Carton Dimensions

    (L x W x H) 143 x 85 x 70 cm

    / 56″ x 33.5″ x 27.5″

  • ACCESSORY

    GA001RF

    Safety Retractable Seat Belt ●

    GA002RF

    Wireless Chest Belt ●

    GA003RF

    Assistive Hand Grip Gloves ●

    GA004RF

    Adjustable Lateral Calf Support Set ●

    GA006RF

    Workplace Accessory-Square Tube –

    GA007RF

    EZ Accessory –

    GA008RF

    Orthopedic Wide Rehab Pedal –

    GA009RF

    Fitness Tracker ●

    GA0010RF

    Arm Rest –

    GA0011RF

    Deluxe Seat –

● Standard / ─ Not offered / * Bluetooth module sold separately
