GB7005 MINI MINI RECUMBENT CROSS TRAINER

MINI RECUMBENT CROSS TRAINER
GB7005 MINI

GB70050 MINI is much compact with our GB7005. We offered the friction-free magnetic resistance system with no wearing parts for maximum performance and durability on GB7005 MINI Mini Recumbent Cross Trainer to provide the quiet and smooth exercise feeling. Simply combining the recumbent seat with elliptical trainer stride length motion to reduce some of the impact and ease back strain while exercising.

COMPATIBLE:

ENJOY THE VIEW

SMART CONSOLE

10.1 INCH TFT LCD Console


Body Charger all cardio products feature a user orientation technologiesthat make our products more humanity, versatile and interactive.

STANDARD CONSOLE

9 INCH LCD Console


It includes workout calendar that can save with USB, which enables each user to store past exercise data at anytime.

KPEEP IT MINI

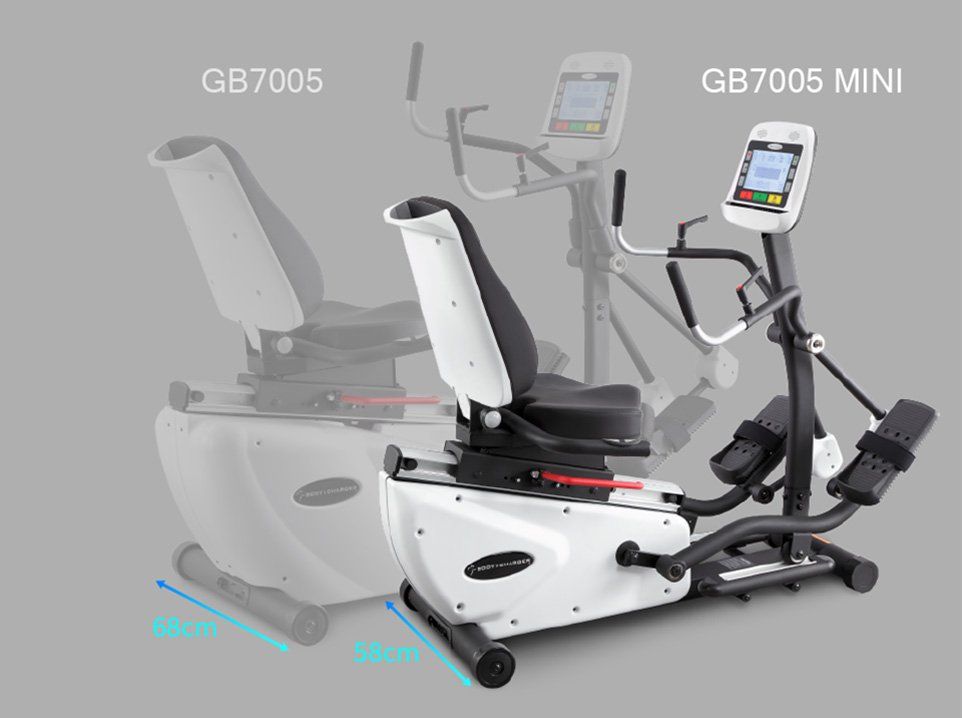

Compact Size with 58 cm/23” wide frame is smaller than the other recumbent cross trainer and can accommodate short users for easy access the Mini Recumbent Cross Trainer .

AN ORIENTION TO START

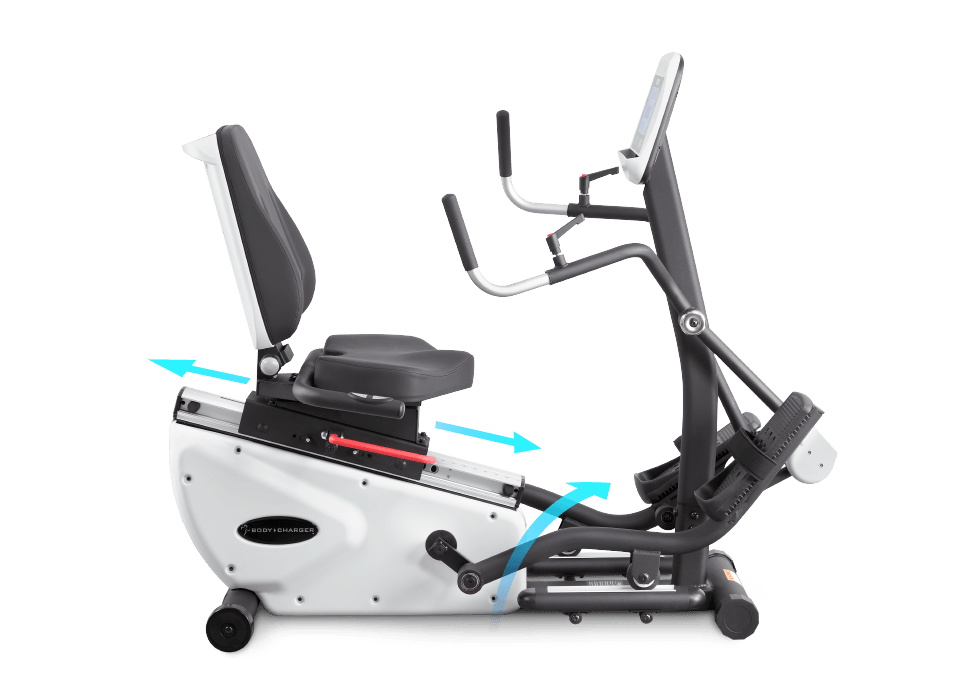

An integrated Tilt Frame of Body Charger Mini Recumbent Cross Trainer to make the smaller or elder exercisers workout more comfortable.

PULL & PUSH YOUR HANDS AND FEET

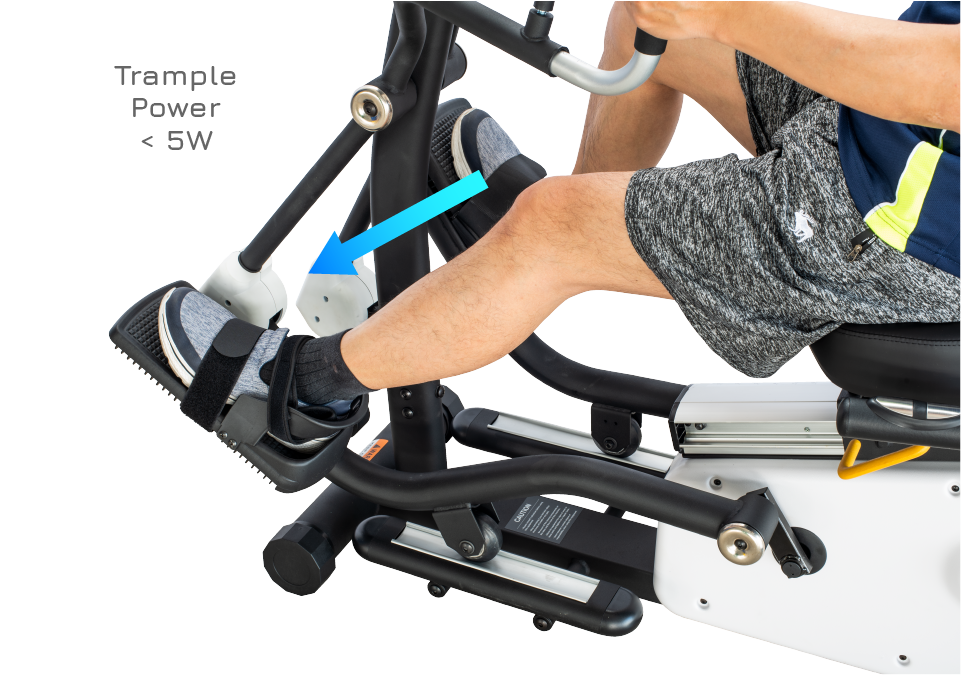

Body Charger Mini Recumbent Cross Trainer with long pedal arms and overlapping pedals provide smooth, natural and stable elliptical movement that makes every workout comfortable and efficient.

STARTING WITH YOUR BREATH

Effect of very Low-intensity Resistance Training with slow movement on muscle and strength is very friendly user interface in senior, rehabilitation, wheelchair exercisers.

SPECIFICATIONS

  • FEATURES

    Bi-Directional ●

    Low Watts Starting ●

    Total Body Training ●

    Independent Stepping Motion

    Low Step-Through Design –

    Seat Design 20″ Oversized Seat

    Swivel Seat Function 180°

    Reclining Seat Adjustment 3 Levels / 12°

    Seat Adjustment 14, Fully Horizontal Adjustment

    Removable Seat Function –

    Handlebar Adjustment 4 Levels

    Adjustable Console Angle –

    Handlebar Design Easy-Grip Handlebar with Anti-Slip Surface

    Pedal Design Orthopedic Rehab Pedal with Neoprene Supportive Heel Cup

    Wheels for Easy Mobility ●

    Wheelchair Accessible –

    With Accessory Holder ●

    Energy Saving Mode ●

    Certificated CE

  • STANDARD CONSOLE

    Display Type 9″ White Backlit LCD

    Exercise Programs 20, Warm Up, Manual, Interval, Valley, Ramp, Mountain, Rolling, Climb, Random, Hill, Fat Burn, Cardio, Strength, HRC (65%, 85%), Constant Power, Isokinetic, Goal (Calories, Distance), Recovery, User 1

    Display Feedback Time, Level, Pulse, Distance, Calories, RPM / SPM, Watts, METs, Speed

    Compatible Apps Optional, Kinomap/Zwift App

    Capacitance Touchable Keypad ●

    USB Port ●, Export Workout Data, Software Upgrade and Charging

    Quick Start ●

    Pause Function ●

    Multi-Language –

    Entertainment System –

    Bluetooth BT 4.2 (FTMS)* Optional, required for App

    Wireless –

    NFC –

    Built-in Heart Rate Monitor (5K) Embedded

    Built-in Heart Rate Monitor (Bluetooth) –

    Headphone Plug –

    RS232 Port –

  • SMART CONSOLE

    Display Type 10.1″ TFT IPS Touch Screen

    Exercise Programs 16, Quick Start, Hill, Interval, Goal (Time, Calories, Distance, Steps), Virtual Reality, HRC (60%, 80%, Target HR), Fitness Test, Custom, Isokinetic, Constant Power, Brain Games

    Display Feedback Time, Level, Pulse, Distance, Calories, METs/Watt, RPM/Speed

    Compatible Apps Optional, Kinomap/Zwift App

    USB Port ●, Export Workout Data, Software Upgrade and Charging

    Quick Start ●

    Pause Function ●

    Multi-Language EN, ZH-TW, ZH-CN, JP

    Entertainment System ●

    Bluetooth BT 4.2 (FTMS)* Optional, required for App

    Wireless ●

    NFC ●

    Built-in Heart Rate Monitor (5K) Embedded

    Built-in Heart Rate Monitor (Bluetooth) Embedded

    Headphone Plug ●

    RS232 Port ●

  • RESISTANCE SYSTEM

    Operation System EMS System

    (Electromagnetic)

    Resistance Levels 32 Levels

    (Standard Console)

    36 Levels

    (Smart Console)

    Power Requirements Input: 100 – 240 VAC

    ~ 50/60Hz, 1.5A Max

    Output: DC30V-2.0A

  • TECH SPEC.

    Max. User Weight 150 kg / 330 lbs.

    N.W. 77 kg / 169 lbs.

    G.W. 90 kg / 198 lbs.

    Overall Dimensions

    (L x W x H) 155 x 70 x 127 cm

    / 61” x 27.5″ x 50″

  • PACKING DETAILS

    Container loading 1 x 20″ 33 pcs

    Container loading 1 x 40″ 72 pcs

    Carton Dimensions

    (L x W x H) 146 x 71 x 59 cm

    / 57.5″ x 30″ x 23″

  • ACCESSORY

    GA001RF

    Safety Retractable Seat Belt ●

    GA002RF

    Wireless Chest Belt ●

    GA003RF

    Assistive Hand Grip Gloves ●

    GA004RF

    Adjustable Lateral Calf Support Set –

    GA006RF

    Workplace Accessory-Square Tube –

    GA007RF

    EZ Accessory –

    GA008RF

    Orthopedic Wide Rehab Pedal –

    GA009RF

    Fitness Tracker ●

    GA0010RF

    Arm Rest ●

    GA0011RF

    Deluxe Seat –

● Standard / ─ Not offered / * Bluetooth module sold separately
